Car Windshield Crack Repair Technical Framework

You are familiar with the sound. A chunk of gravel is kicked up from the tire of the truck that is in front of you while you are driving down the highway. You are not paying attention to yourself at the time. Your perspective, which was before unspoiled, is abruptly shattered by a chip in the shape of a star. There is a significant break. Almost every motorist has this discomfort, which is frequently followed by a brief period of indecision. Or do you decide to arrange a repair, or do you choose to ignore it and hope that it remains small? The majority of motorists consider windshield repair to be a merely cosmetic technique, sometimes known as a method of removing a defect from the glass.

Get An Auto Glass Replacement Quote Now 866.278.7417

Uncovering the Concept of Laminated Glass

The first step in comprehending how a repair operates is to have an understanding of the thing that is being fixed. Your windshield is comprised of laminated glass, in contrast to the tempered glass that is found in your side windows. Tempered glass is meant to shatter into thousands of dull, harmless fragments upon impact.

The construction of laminated glass involves the use of two layers of glass that are encased within a layer of polyvinyl butyral (PVB). The protective net is comprised of this plastic interlayer. The outer layer of glass on your windshield will often shatter when a rock strikes it, but the PVB layer will hold the fragments together, so preventing shards from flying into the face of the driver inside the vehicle.

The objective of the framework for repairing the glass is to make a connection between the outer layer of glass and the PVB interlayer in a way that is both secure and reliable. Should the bond fail to be successful, the fracture will gradually expand as a result of fluctuations in temperature, flexing of the chassis, and vibrations from the road.

Displacement of Air And Injection of Resin Make Up The Fundamental Framework

There is a certain order of actions that must take place in order for a windshield repair to be technically successful. These include accessing the break, eliminating air, injecting resin, and curing the bond. The repair will be unsuccessful if any of the steps in this framework are skipped or sped through.

Before beginning the evaluation and preparation process, technicians classify chips into the following categories: bullseyes, stars, half-moons, and combo breaks. According to the geometry of the break, the approach must be taken. For instance, a “star” break is characterized by several legs that radiate outward, necessitating the use of a thinner resin in order to enter the narrow fissures. On the other hand, a “bullseye” break is associated with a cleaner separation that may be able to retain thicker resin with more ease.

The region has to be cleansed and allowed to dry. Windscreen repair is a process that is hampered by moisture. It is impossible for the resin to adhere to the glass if water is trapped inside the fracture; as a result, the repair will either seem foggy or will not be successful at all.

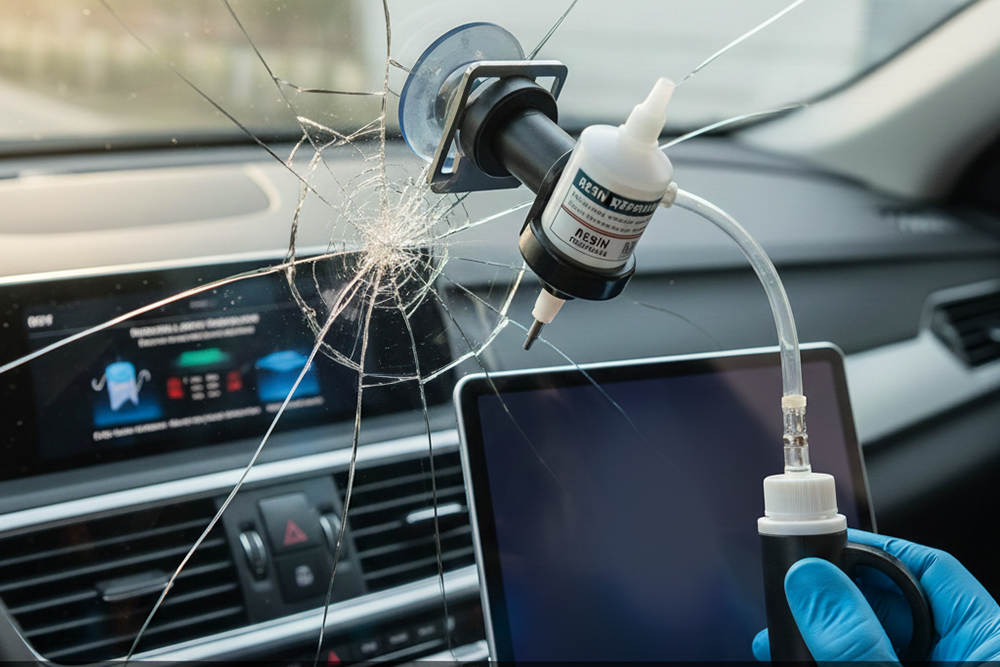

What differentiates professional repair from do-it-yourself kits is the stage that involves the creation of the vacuum. While the impact point is being mounted, a bridge assembly or injector is being installed. It is not enough for the technician to just inject resin; they must first remove any air that may be present.

For the resin to be able to fill the area, the air that is trapped inside the breach must be filled. Extraction of air from the small fissures is accomplished by the technician through the use of a mechanical vacuum cycle. Due to the absence of this vacuum stage, air bubbles will continue to be trapped, which will result in the formation of weak areas that reflect light, so revealing the fracture and allowing it to spread in the future.

The cycle of injection begins with the establishment of the vacuum, and then it transitions to the pressure phase. In order to fill the breach, specialized resin is pushed in. Through the application of this hydraulic pressure, the fluid is able to reach the extreme edges of the fissures. It is possible for a technician to utilize a method known as “flexing” when dealing with intricate breaks. This technique involves applying modest pressure to the glass from the interior of the vehicle in order to gently open the cracks and allow the resin to flow into tight locations.

The fluid that is utilized in windshield repair is an acrylic acid ester monomer. This indicates that resin is a chemical substance. It’s not just superglue, either. In the formulation, two particular qualities are taken into consideration:

In terms of its viscosity, the resin needs to be sufficiently thin to allow capillary action to flow into fractures that are smaller than a human hair, while yet being thick enough to keep the glass together.

It is necessary for the resin to have a refractive index that is identical to that of glass in order to turn the repair into an undetectable one. Even after the damage has been repaired, if the refractive index is not correct, you will continue to experience a distraction or a “ghost” of the original injury.

Following the completion of the filling process, the resin needs to be set before it can be polished. The resin is photoreactive and anaerobic, respectively, meaning that it cures in the absence of air. Using a curing tab, which is a little plastic film, technicians first shut off oxygen and then use a UV lamp to complete the process. In a few minutes, the liquid resin is transformed into a solid polymer as a result of a chemical process that is triggered by the UV radiation. At long last, the extra glue is removed by scraping, and the impact point is polished in order to bring back its clarity.

Do you have a Question?

Get An Auto Glass Replacement Quote Now 866.278.7417

Limited Capabilities and When Technology Is Not Able to Fix It

Even though there have been breakthroughs in resin chemistry and injection equipment, it is still not possible to preserve every windshield. Generally speaking, the decision framework known as “repair versus replace” is dependent on three factors:

Size and Depth: In general, a chip is considered to be a candidate for repair if it is less than a quarter, which is measured at around one inch in diameter. Generally speaking, anything that is bigger will damage the structural strength of the glass to an excessive degree. In the event that the damage has affected both layers of glass as well as the PVB interlayer, it is not feasible to repair the damage.

Position: This is really important for your safety. In the event that a chip is located inside the driver’s line of sight, the majority of specialists will advise replacing it. Even if the repair is flawless, there may still be a very slight amount of distortion, which can be quite distracting. In addition, the link between the glass and the metal frame of the vehicle is compromised when there are breaks along the edge of the windshield, which necessitates the replacement of the windshield immediately.

Advanced Driver Assistance Systems (ADAS) are cameras and sensors that are often located behind the windshield of modern vehicles. These systems are equipped with contemporary automobiles. The emergency braking system, lane-keeping assistance, and rain detection are all controlled by these sensors. If the vision of these cameras is distorted as a result of a crack or a repair, the safety systems of the vehicle may not operate properly. In many instances, manufacturers need a complete replacement of the windshield as well as a recalibration of the system in the event that damage happens inside the photograph’s “field of view.”

Why Do It Yourself Kits Frequently Fail to Work

There are a few bucks that may be spent at an auto parts store to purchase a repair kit. These kits typically include a vial of resin, a pedestal, and a syringe for administering the resin. Despite the fact that they adhere to the same fundamental idea, which is to fill the crack with resin, they do not possess the mechanical advantage that professional equipment does.

There are very few instances in which the manual pressure that is created by a plastic syringe is sufficient to produce a perfect vacuum or to drive resin into the most constrained points of a star break. As a result, do-it-yourself repairs frequently result in air pockets. You will not be able to make any repairs to the resin after it has cured. When a do-it-yourself repair fails, it is quite likely that you will need to replace the complete windshield.

Questions That Are Frequently Asked

How long does it take for a windshield to be repaired by a professional? Most repairs are finished within thirty to forty-five minutes. Because the resin cures so rapidly when exposed to UV light, you will be able to drive the car as soon as the service is completed.

Is it possible that the chip will vanish entirely following the repair? No, not one hundred percent. The stability of the structure is the major objective. In spite of the fact that the cosmetic look will greatly improve (typically by 80-95%), there is still a possibility that you may notice a little hole or blemish where the rock made impact. Although the resin is able to restore the strength, it is not capable of recreating pristine, shatter-free glass.

The mending process is affected by the weather, whether it be cold or hot. Indeed. As the temperature rises, glass will either expand or compress. Before beginning work, technicians are required to regulate the temperature of the glass. When you try to inject resin at ambient temperature into a windshield that is frozen, it can cause the crack to expand out of control almost immediately.

Is a windshield that has been fixed as durable as a brand-new one? It is possible for a windshield that has been restored effectively to keep the majority of its original strength and to pass safety examinations. In the case of an accident, it stops the fracture from spreading further and ensures that the PVB layer retains its integrity.

Putting Emphasis on Safety Instead of Aesthetics

The process of repairing a windshield involves a combination of concepts from fluid dynamics and chemical engineering. It is a procedure that is intended to save you money on the expense of a complete replacement while ensuring the safety of your car. It is important to understand the technical effort that is necessary to mend a simple stone chip since it underlines why it is so important to treat the damage as soon as possible.

If a chip is allowed to rest for a longer period of time, dirt and moisture will build inside the break, making it more difficult for the resin to successfully bind within the crack. If you treat your windshield with the same level of care that you treat your engine, which is a key safety component, you will be able to maintain your safety while driving.

When is a crack in the windshield too large to be repaired? A tiny nuisance, such as a chip or crack in your windshield, may appear to be of little consequence. Ignoring it in the hope that it won’t become any worse is a tempting option. Nevertheless, that little defect has the potential to become more severe, transforming a straightforward repair procedure into an expensive replacement. Understanding the rate at which these fissures spread and the reasons for their expansion is essential to making the proper decision.

This article will provide an explanation of the causes that cause cracks in the windshield to spread, which will assist you in determining whether you should consider a fast remedy or a replacement that is strictly essential. Finding out when to take action may help you save time and money, as well as guarantee that your car continues to be safe while driving.

The Science Behind the Glass of Windshields

There are several layers of glass that make up the windshield of your vehicle. The piece of safety equipment is a complex piece of equipment that is built from laminated glass, which consists of two layers of glass that are fused together with a layer of polyvinyl butyral (PVB) that is robust and transparent in between. For the purpose of preventing the glass from shattering into deadly fragments in the case of a hit, this structure was created. When your windshield is struck by a rock or other debris, the damage that it causes is often limited to the outside layer, which results in a chip or fracture.

Despite the fact that the PVB layer is responsible for maintaining the glass’s integrity and providing structural support, the outer layer has been weakened. The integrity of the glass is compromised, which makes it vulnerable to a variety of stressors that can eventually cause the original damage to become more extensive.

Do you have a Question?

Get An Auto Glass Replacement Quote Now 866.278.7417

Key Elements That Contribute To The Expansion of Cracks

Your windshield is now being affected by a number of environmental and physical factors that are always at work. A minor chip that can be repaired can become a huge crack that cannot be repaired if these variables are present.

Alterations in Temperature: The most significant factor that contributes to crack growth is the fluctuation in temperature. Whenever it is heated, glass expands, and when it is cooled, it contracts. There is a large amount of tension that is caused when this occurs in an uneven manner over the surface of the windshield.

Consider that it is a scorching summer day. It is consistent that the glass is heated. You get into your vehicle and turn up the temperature of the air conditioning. There is a quick contraction of the windshield as a result of the cold air that hits the interior of the glass, while the exterior surface continues to be heated. As a result of this temperature difference, the glass is pulled in opposite directions, which exerts a tremendous amount of pressure on the region that is deficient surrounding the fracture, leading it to grow longer.

During the winter, the procedure is repeated in the other direction. If you use your defroster to heat a windshield that is frozen, you will experience a stress pattern that is comparable. Even exposure to direct sunshine on a very chilly day might be sufficient to initiate or speed up the process.

Infiltration of Moisture: When water seeps into a gap in a windshield, it causes a variety of issues to present themselves. Freezing and thawing: The fracture will enlarge if the moisture that is contained within it freezes. This expansion serves as a very little wedge, which causes the fracture to expand to a considerable size. During the winter months, this cycle of freezing and thawing can create highly destructive conditions.

Debris and Dirt: Water frequently brings dirt and other tiny particles into the fracture of the structure. It is possible for this material to hinder the process of healing, which will make it more difficult for the repair resin to completely fill the fracture. A filthy fracture is sometimes hard to repair in a clean manner, and the process will leave a noticeable scar long after it has been completed.

There is a risk of the PVB interlayer becoming damaged if it is exposed to moisture for an extended period of time. This can result in the interlayer becoming detached from the glass. The structural integrity of the entire windshield is compromised as a result of this matter.

An example of structural stress and vibration is the fact that the structure of your car is not completely rigid; when you drive, it bends and twists. When you drive over a speed bump, hit a pothole, or even merely navigate uneven roadways, vibrations are transmitted through the body of the vehicle and, as a result, the windshield to the outside of the vehicle.

When it comes to the structural support system of your vehicle, the windshield is an essential component. Glass is subjected to continual stress as a result of the vibrations and structural bending that occur on a daily basis. The formation of a crack can result in the concentration of stress at a weak spot, which can then lead to the steady enlargement of the fracture over time. It is possible that a single severe jolt from a pothole is all that is required to cause a crack to spread several inches in an instant under some circumstances.

Is It Possible to Repair the Crack in Your Windshield

The extent, kind, and location of the damage are the primary factors that determine whether or not a repair is feasible. The majority of the time, auto glass specialists adhere to a few standard criteria.

When It Is Most Likely Sufficient to Repair: Chips are: If the diameter of a circular “bullseye” or “star-break” chip is the same as or less than a quarter, which is around one inch, then it is typically repairable.

Cracks: If the crack is shorter than the length of a dollar bill (about six inches), it is typically possible to fix it. Cracks tend to be straight and solitary.

Taking prompt action is essential. At the beginning of the repair process, a specialized resin is injected into the injured region, and then the resin is cured using UV radiation. The glass is able to regain its strength through this process, which also stops the break from spreading further. It is necessary for the crack to be clean, devoid of any moisture or dirt, in order for the repair to be successful.

When It Is Necessary to Replace Something: Cracks that are significantly longer than six inches are typically too massive to be fixed in a secure manner. It is possible that the repair glue will not be able to adequately cover the full length, and it is also possible that the structural integrity in the area has already been affected.

Location: A replacement is nearly always necessary if the fracture reaches all the way to the edge of the windshield. In addition to weakening the overall structure, damage that occurs close to the edge is also very likely to spread. In a similar vein, damage that is directly in the line of sight of the driver typically necessitates a replacement. This is because repairs might leave a minor distortion that can potentially impede eyesight.

In terms of complexity, cracks that have already branched out or cracks that have several cracks are not suitable candidates for reconstruction.

Contamination: If you have waited for an excessive amount of time and the fracture is filled with dirt or moisture, it will be extremely difficult to successfully repair it in a way that is concealed from view.

The Next Steps You Should Take

That tiny fracture in your windshield is more than simply a matter of aesthetic concern; it is a clock that is moving forward. Temperature, dampness, and vibrations from the road are all factors that are always striving to make the situation even more difficult. Having a grasp of these elements will allow you to comprehend the critical nature of repairing the harm as soon as possible.

In the event that you have a chip or crack, you should not wait for it to worsen. As quickly as possible, get it examined by a qualified vehicle glass specialist who specializes in inspections. It is possible to avoid the enormous price and inconvenience of replacing the entire windshield by performing a rapid repair, which will also ensure that your car remains safe and that its structural integrity is not compromised.
